LPA5168DPS

5.15-6.875GHz,V2, 2X2 MIMO, V & H Pol, 90 °(-6dB)/ 60 ° (-3dB), 18dBi Sector Antenna

Overview
Download
Lab Test Report
Gallery

Product Description

LPA5168DPS is a V2, two ports, 90 degree (-6dB)/ 60 degree(-3dB) wideband sector antenna working at 5.15-6.875GHz. It is
designed for WiFi 7 and future use, and almost half size compared to V1 antenna of LinQ.

Features

● Compact size to help deploy networks easily.
● A single antenna covers 5.15-6.875GHz.

● 18dBi gain to cover long distance.

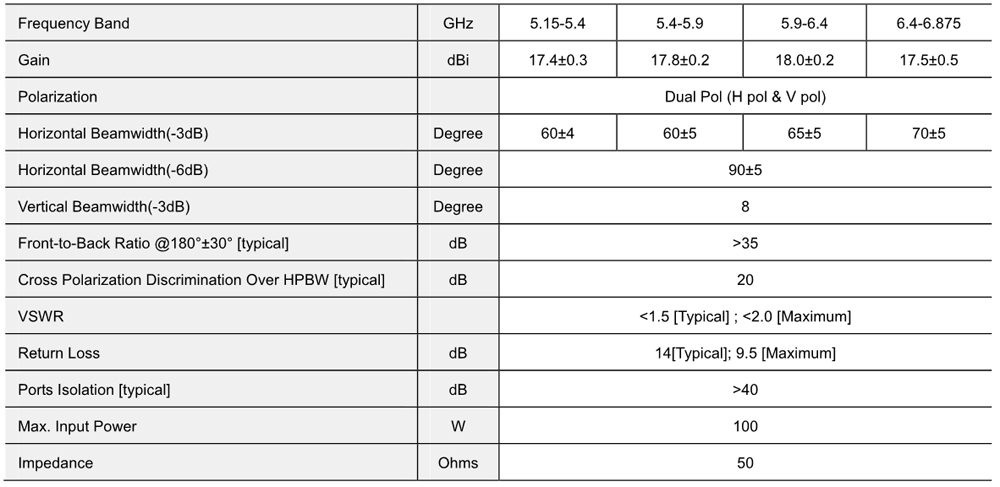

Electrical Specifications

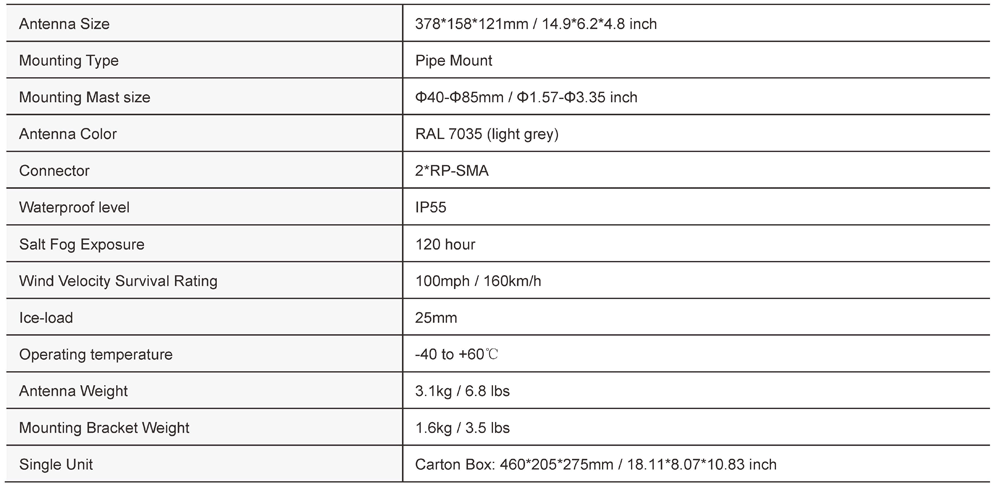

Mechanical Specifications

NAME	TYPE	SIZE
LPA5168DPS_datasheet.pdf	pdf	2.35MB
