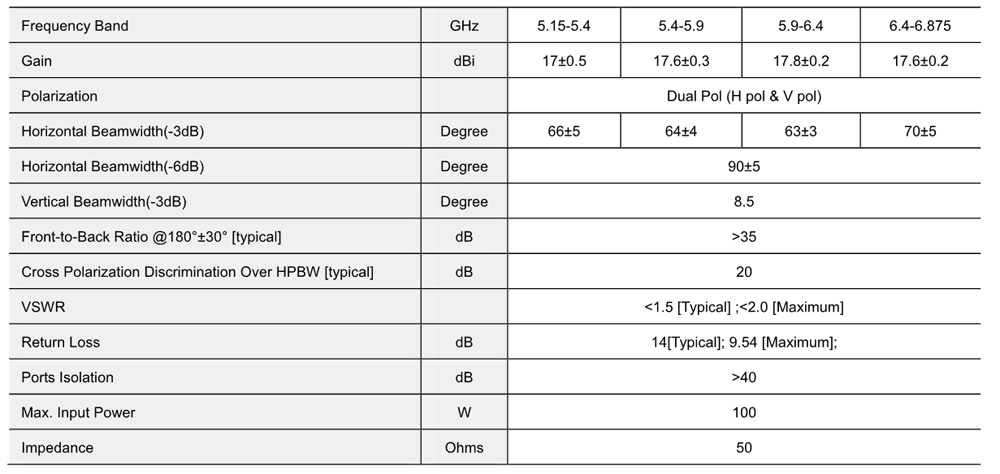

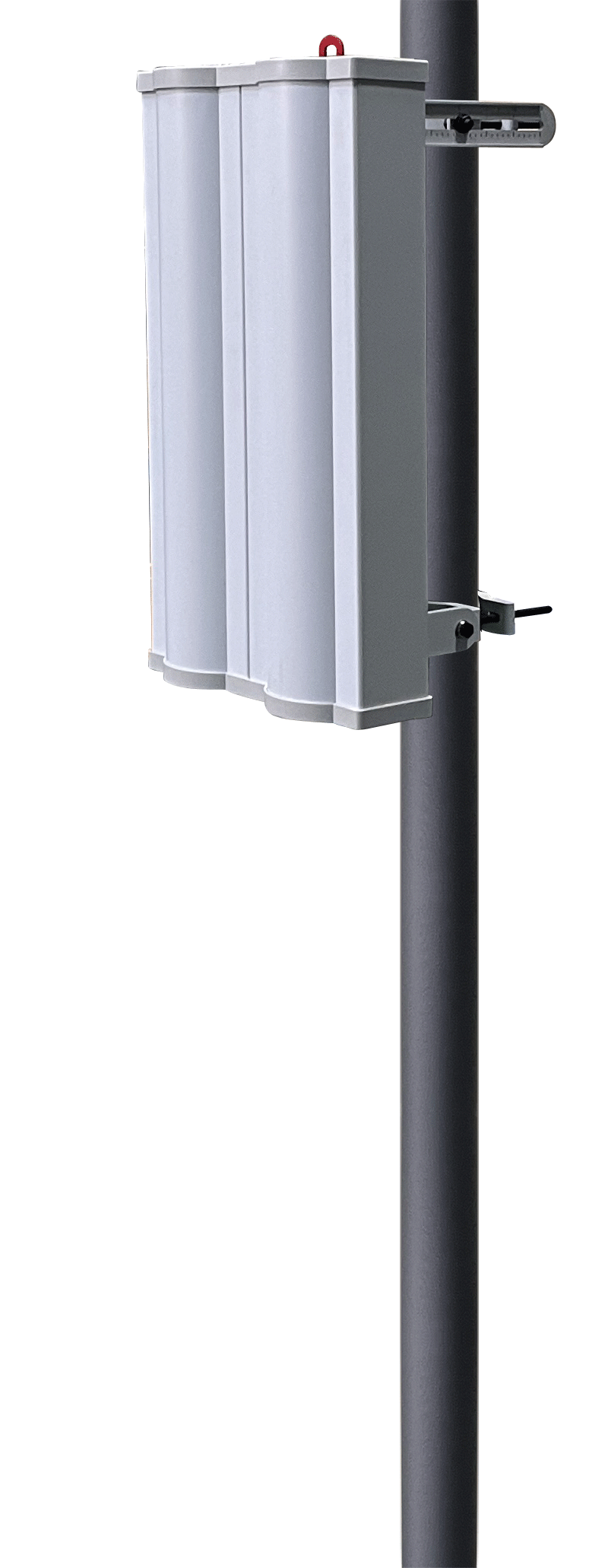

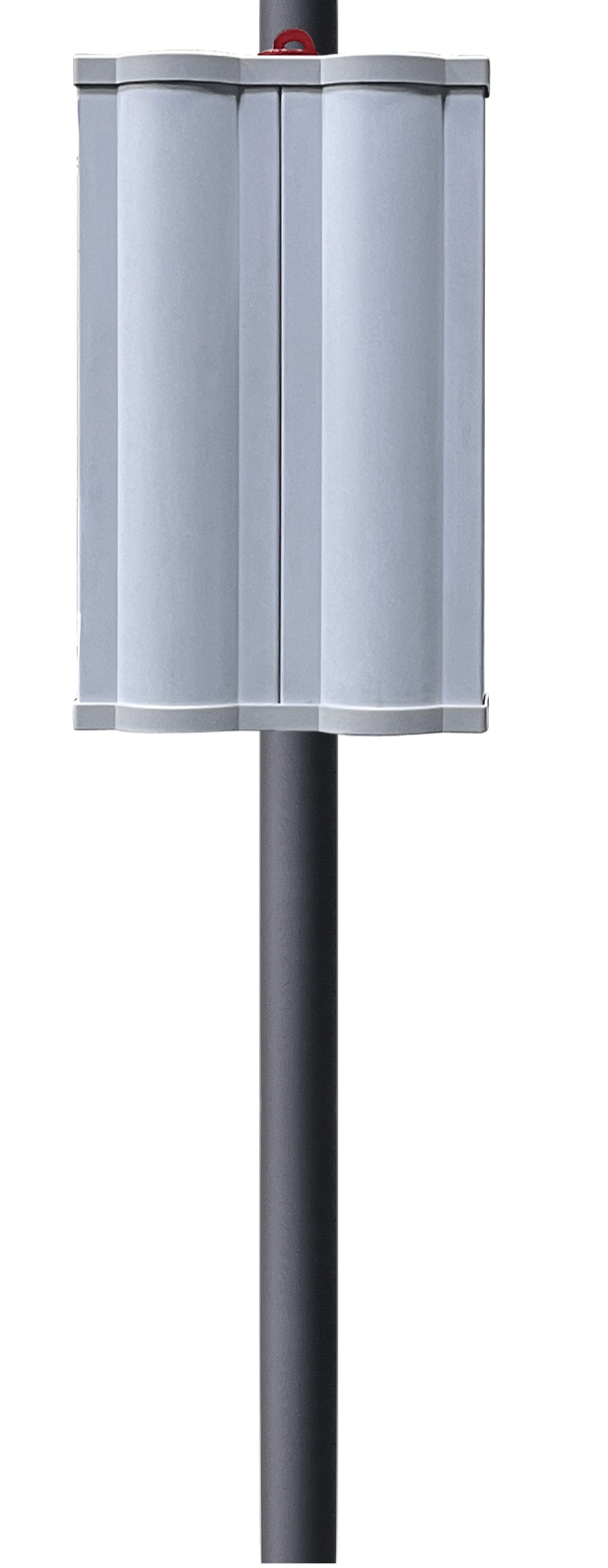

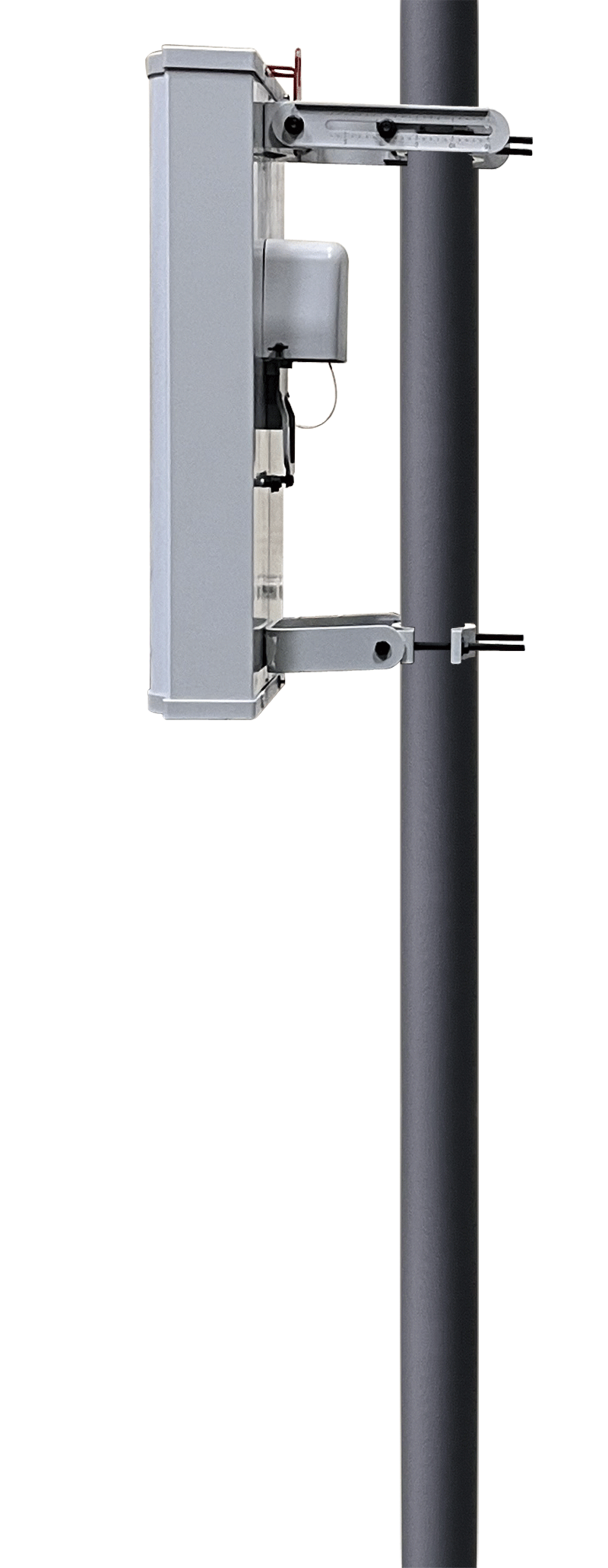

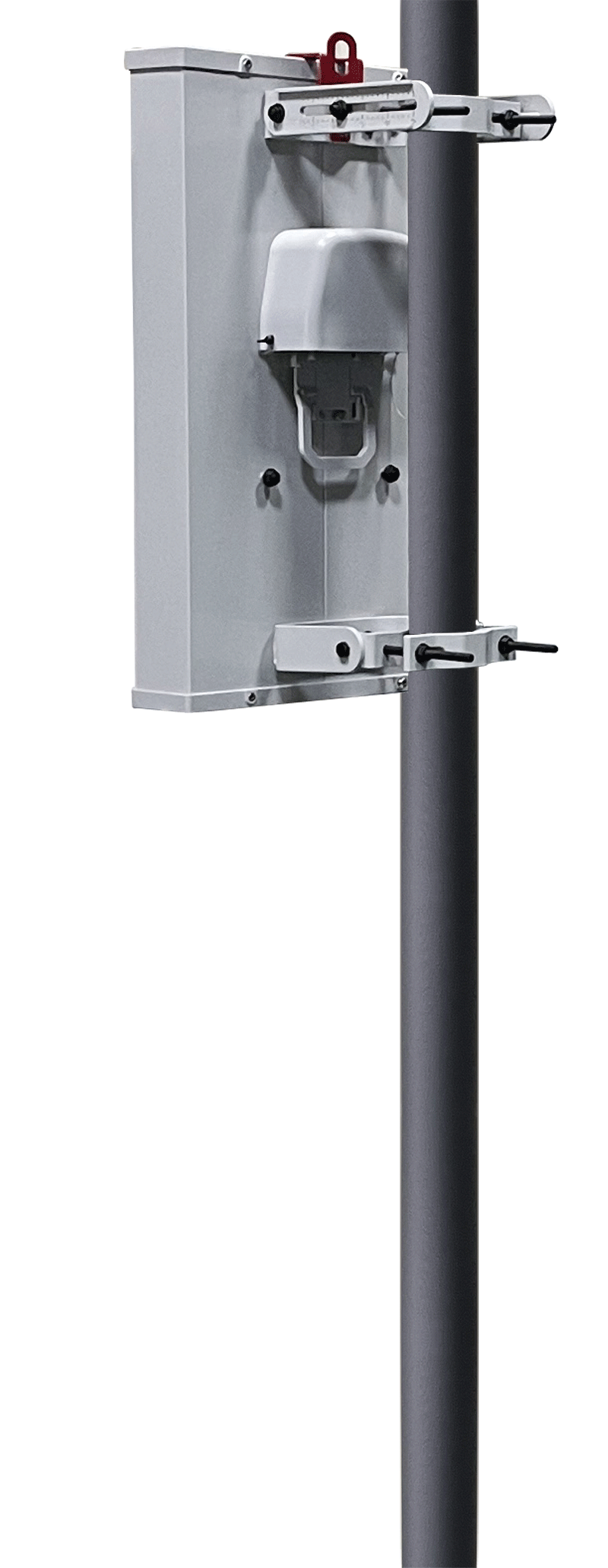

LPA5168HV is a 4 port, 90 degree (-6dB)/ 65 degree(-3dB) sector antenna working at 5.15-6.875GHz, which is designed to cover U-NII-1 to U-NII-7. It has 18dBi gain, 8.5 degree (-3dB) elevation beamwidth, more than 35dB F/B ratio, and perfect pattern plots.

Features

● Cover wide band from U-NII-1 to U-NII-7, which is 5.15-6.875GHz.
● 18dBi gain to cover long distance.

● Big F/B ratio and forward shape pattern plots to reduce noise.
