LPA5168DPH
5.15-6.875GHz, 2X2 MIMO, V & H Pol, 90 °(-6dB)/ 65 ° (-3dB), 19dBi Sector Antenna
|

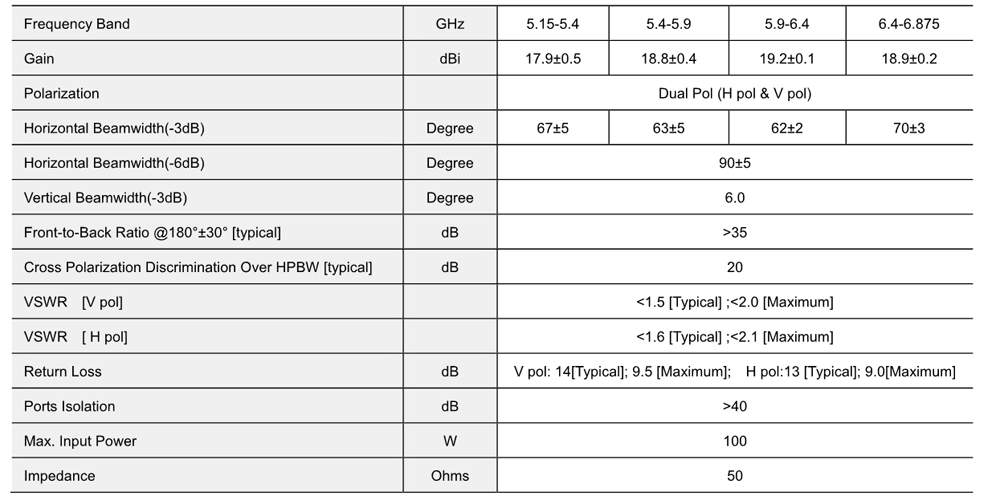

LPA5168DPH is a 2 port, 90 degree (-6dB)/ 65 degree(-3dB) sector antenna working at 5.15-6.875GHz, which is designed to cover U-NII-2 to U-NII-7. It has 19dBi gain, 6 degree (-3dB) elevation beamwidth, more than 35dB F/B ratio, and perfect pattern plots.
Features
● Cover wide band from U-NII-2C to U-NII-7, which is 5.15-6.875GHz. ● Big F/B ratio and forward shape pattern plots to reduce noise.
|
| NAME | TYPE | SIZE |
| LPA5168DPH_datasheet.pdf | 2.35MB |
|
