LPA5971HV
5.925-7.125GHz, 4X4 MIMO, V & H Pol, 60 ° (-3dB), 19dBi Sector Antenna
|

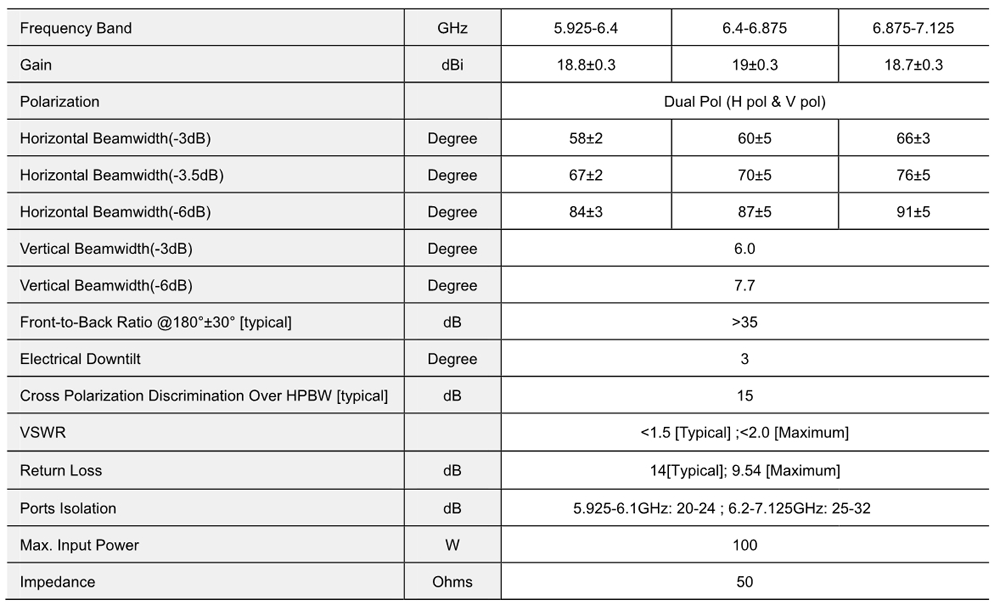

LPA5971HV is a 4 ports, 60 degrees (-3dB) sector antenna working at 5.925-7.125GHz. It has 19dBi gain, 6.0 degree elevation beamwidth, and more than 35dB F/B ratio.
Features
●19dBi high gain to cover long distance. ●More than 35dB F/B ratio to reduce co-location noise disturbance. ●Compact size of 545mm length.
|
| NAME | TYPE | SIZE |
| LPA5971HV_datasheet.pdf | 2.0MB |
|
